| Brand Name : | Luminans |
| Model Number : | JP-9505 |
| Certification : | CE, EMC, LVD, ROHS, NEMKO |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal |
| Supply Ability : | 100000pcs per month |
| Delivery Time : | 30days |
LED Mini Spotlight 1.5W Dimmable Anti-Glare Spotlight
JP-9505
data sheet.pdf
Ceiling Recessed Spot Light Applications:
Ceiling recessed spotlights are mainly used in furniture lighting,
office lighting, commodity lighting, display lighting, jewelry
counter lighting, artwork lighting, indoor lighting, commercial
lighting, etc.
Ceiling Recessed Spot Light Specifications:
| LED Light source | COB |
| Lamp power (W) | 1 |
| CRI (Ra>) | 80 |
| Working lifetime | 50000 |
| Certificate | CE, EMC, LVD, ROHS, NEMKO |
| Brand name | Luminance |
| Application | Indoor lighting |
| Color | White |
| Beam angle: | 18 degrees and 45 degrees |
| Warranty | 5 |
| Lamp luminous | 80lm/100lm |
| Color temperature | 2700K/3000K |
| Lamp body material | Aluminum |
| Model number | JP-9505 |
| MacAdam factor | SDCM<3 |
| Material | Aluminum |
| Size | Dia 30mm |
| Tilt | Fixed |
| Input Voltage | 220-240 |
| Lamp efficacy | 53lm/w |
| Working temp. | -20C - 50C |
| IP Rating | IP20 |
| Item Type | LED spotlight |
| Product size | 30x26mm |
| Cutout | 25mm |
| Packing details: | 100pcs/ctn |
| Delivery time | 25-35 days |
Ceiling Recessed Spot Light Advantages:
1. Fast connection - Easy-connect design for fast install

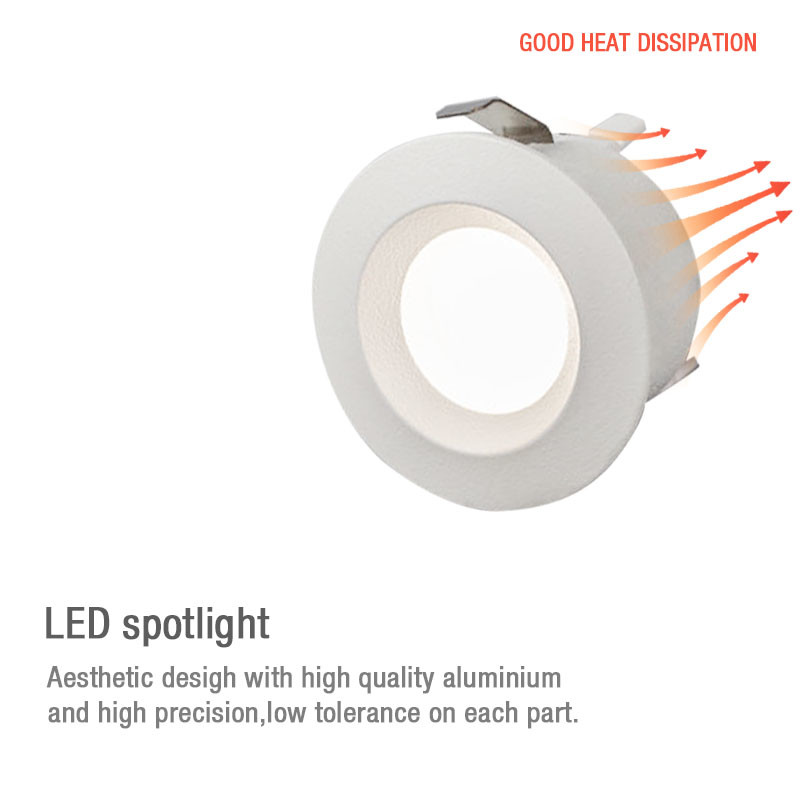

2. Good Heat Dissipation - Aesthetic design with high-quality
aluminum and high precision, low tolerance on each part.
3. Spot Or Flood - The width of the object or the distance between
the luminaires, we can provide 18 degrees and 45 degrees for
options.

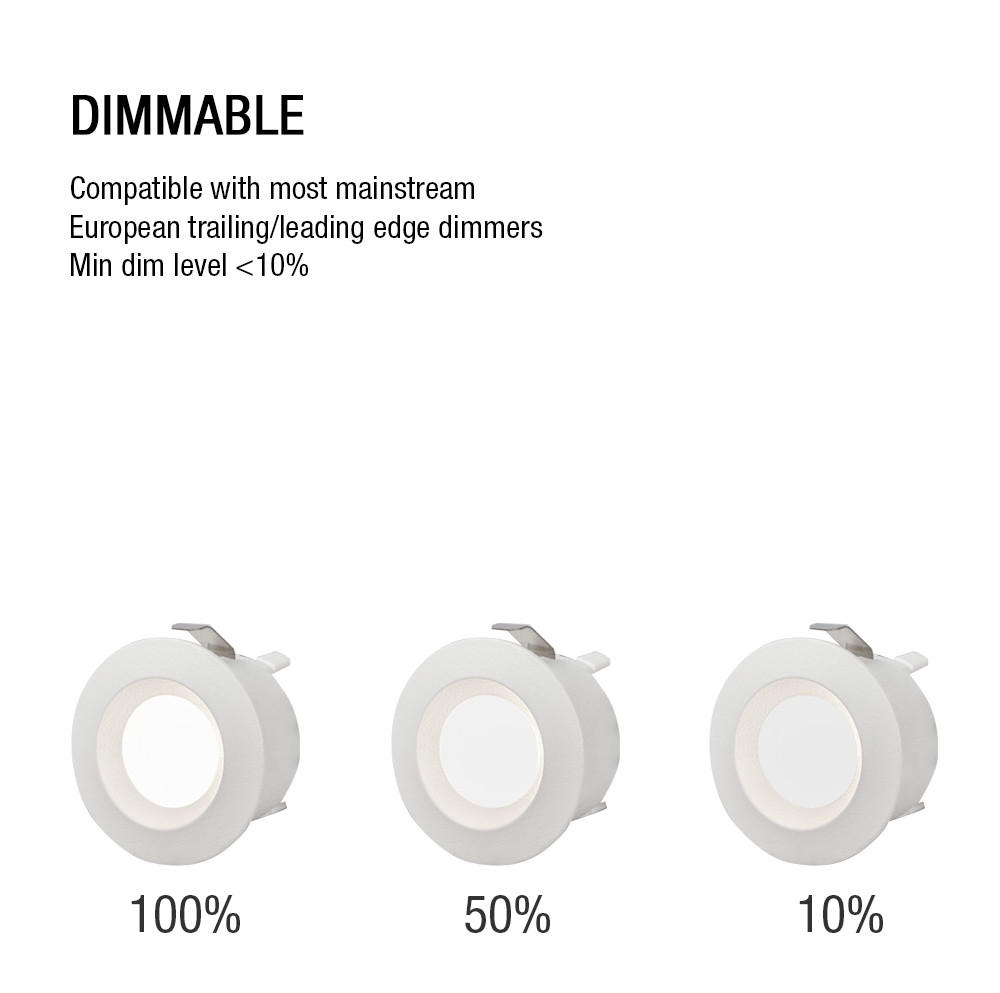

4. Dimmable - Compatible with most mainstream European
trailing/leading edge dimmers. Min dim level < 10%
|
|
